Plate heat exchanger in Refrigeration

Odoo image and text block

In refrigeration Plate and shell heat exchangers are used as evaporators, condensers or economizers.

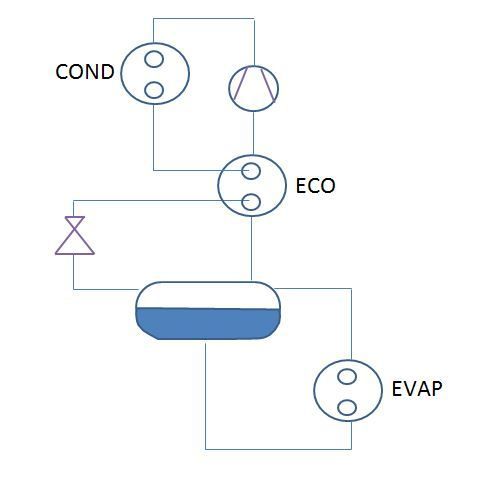

Evaporator (EVAP):

The evaporating refrigerant cools the hot fluid (for example, an external glycol circuit) by taking the heat out as latent heat, therefore having a low flowrate and a high heat transfer cofficient. The evaporator in the refrigeration cycle is also called "Chiller".

Condenser (COND):

Plate and Shell heat exchangers are mainly used as a condenser when a liquid needs to be heated on the secondary side, for heat recovery. When there is no heat recovery required, or suitable heat sink, the heat is ejected directly to the ambient air, finned tube heat exchangers are typically used as “air condensers”.

Economizer (ECO):

To improve the efficiency of the plant an economizer can be used for heat recovery.


Ammonia refrigeration

Ammonia is often used as refrigerant for cooling temperatures in the range -10 °C to -20 °C. GESMEX heat exchangers are very well suited for evaporators. A large nozzle on the shell accomodates the low density vapour. Separators can be integrated in the shell remove liquid droplets.

Odoo image and text block



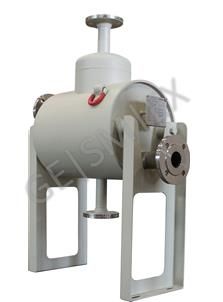

Example:
 Oil cooler, flooded ammonia evaporator

Type:
Plate & Shell, XPS 50
Variant:
fully welded
Features:
with dome to increase the vapor space
Installation site:
Italy






Odoo image and text block



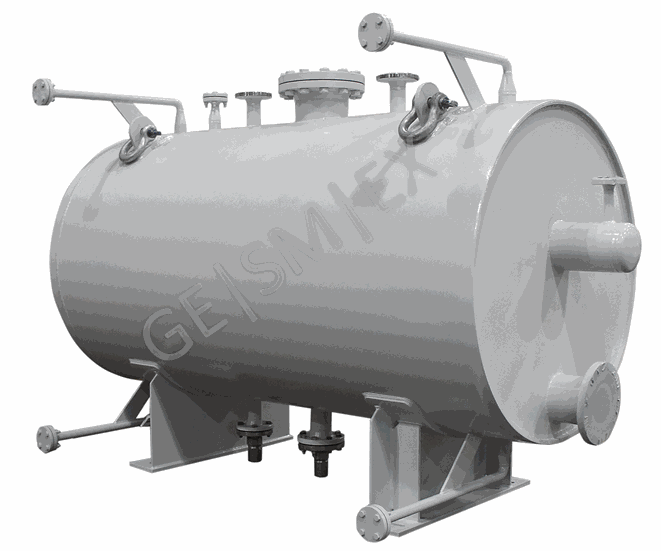

Example:
 Oil cooler, flooded ammonia evaporator

Type:
Plate & Shell, XPS 150
Variant:
fully welded
Features:
eccentric plate pack with internal droplet separator
Installation site:
Germany






Odoo image and text block



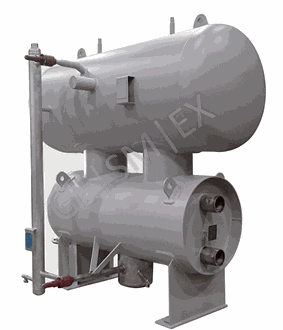

Example:
 Flooded ammonia evaporator with separator

Type:
Plate & Shell, XPS 50
Variant:
fully welded
Features:
eccentrically with external droplet separator
Installation site:
Netherlands






CO2 - refrigeration

Odoo CMS- Sample image floating

Carbon dioxide (CO2) is a natural refrigerant, which is increasingly being used. CO2, compared to synthetic refrigerants (R134a, for example, R12) has a lower environmental impact, with a lower global warming potential, and no harmful effects on the ozone layer. However, high evaporation pressures of 30-40bar are needed to operate a refrigeration cycle.

This is above the capability of conventional plate and frame heat exchanger, however GESMEX heat exchangers are particularly well suited for CO2 evaporators, since they have an extremely high pressure capability, whilst providing the advantages of a plate heat exchanger.

Odoo image and text block



Example:
 Flooded CO2 evaporator with separator

Type:
Plate & Shell, XPS 50
Variant:
fully welded
Features:
design pressure 120 bar
Installation site:

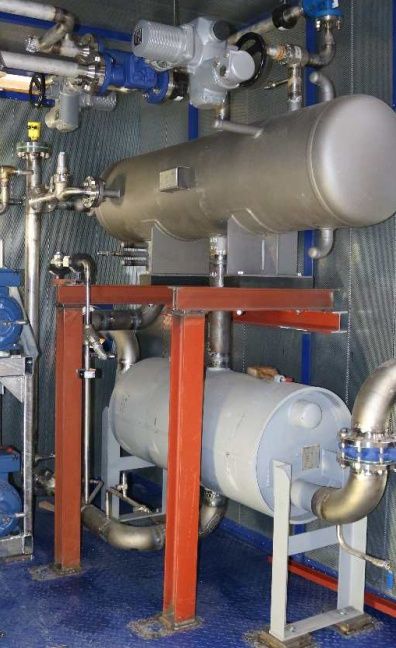

Mobile in container










Heat exchangers in utility systems and for heat recovery

Odoo image and text block



In addition to process-specific tasks, GESMEX plate heat exchangers are also used in numerous auxiliary and utility systems, such as: heating of cleaning solutions, cooling lubricant oil, drying copmressed air, jacket cooling, ...

GESMEX plate heat exchangers are used for heat recovery from exhausst vapors or flash steam, in sewage systems, for heat recovery or power generation from waste gases ...
