Plate & Shell Heat Exchangers - Type XPS

Plate & Shell heat exchangers combine the, compact and countercurrnt, advantages of plate heat exchangers (Plate), coupled with the high pressure ratings of shell and tube heat exchaners provided by cylindrical shells (Shell). So, the best of both worlds. Heat transfer surfaces of 1 m² to 1000 m² enables thermal performance ranges from 10 kW all the way up to 100 MW (obviously dependant on the temperature driving force). The design parameters range from full vacuum to 400 bar (5,800 psi) and from -200 °C to 500 °C, so cryogenic LNG duties all the way to some gas turbine exhaust temperatures with everything else between.

  • high performance with small surface area, weight and footprint by high heat transfer coefficients – reducing structural steelwork and facilitating skid assembly

  • close temperature approach between the hot and cold side by multipass media, providing high heat recovery

  • plate design provides a high wall shear stress, which acts as a self-cleaning effect – reducing fouling and extending the time between cleaning

  • small installation and surface area due to compact design

  • Low cost for steel structures and foundations by a low weight of the equipment

  • fully welded design eliminates gaskets, ensuring high reliability and resistance to failure and leakage, as often experienced with gasketed plate and frame units

  • wide range of plate materials provides high corrosion resistance

  • low liquid inventory provides a rapid start-up and a fast response to changes in process set points and upsets

  • range of plate and nozzle sizes, combined with flexibility of shell design and number of nozzles provides optimized solution

  • shells can be tailored to increase the volume, for evaporating and condensing duties, such as kettle reboilers


Designs of XPS - Heat Exchangers

Plate Pack

The "heart", the core component, of Plate & Shell heat exchangers is the plate pack.

GESMEX is the technology leader in the production of laser-welded cylindrical plate packages. Welds with large cross connection zones, but low heat input lead to outstanding product quality, and high integrity even in tough working conditions.


The configuration of the plate packs is done with a number of parameters: Size, number of plates, number of passes, plate thickness, corrugation pattern, plate material, arrangement of the plate pack in the shell, and flow guidance.

Start with the customer – find out what they want and give it to them.

Odoo text and image block

Basic configurations: Heater & Cooler

XPS plate heat exchangers can be easily configured for heating and cooling of both liquids and gases. The heating or cooling media can be put on the plate or on the shell side. For maximum heat transfer media are arranged in countercurrent flow, for pressure-loss-optimized applications cross flow is preferred. When the thermal duty requires a large thermal length (high NTU), then a multi passes configuration is required. Heating steam is usually on the shell side as larger connections reduce pressure drop on the vapor side and smaller nozzles are possible for condensate outlet.

counter flow, single pass

counter flow, single pass

size: XPS 100

counter flow, single pass

cross flow, single pass

size: XPS 50

counter flow, multi pass

counter flow, multi pass

size: XPS 50

counter flow, multi pass

steam heater

size: XPS 50

Heat exchangers in basic configuration, for which the codes for pressure equipment apply only, with standard parts made of carbon steel or stainless steel, in pressure classes PN 6 to PN 40 are available with short lead times.

Additional customer specific or project specific requirements on design, manufacturing, testing or on documentation of the heat exchangers require individual adjustment of the delivery time.

Heater & Cooler in openable design

When the plate pack is required to be removed from the shell for service work or inspections, Plate & Shell heat exchangers can be configured in an openable design. In this case the plate pack is connected to the shell by a girth flange. This product variant is also used when spare plate packs are held on stock to enable a rapid turnaround during short shutdowns of the plant.

The sizing and configuration of heaters and coolers in openable design follows the same criteria as for fully welded units.

counter flow, openable

size: XPS 100

cross flow, openable

size: XPS 100

openable at both sides

size: XPS 100

flooded evaporator

with knockout pot for droplet separation

size: XPS 50

flooded evaporator

with external droplet separation

size: XPS 100

partial evaporator, multi pass
vertical orientation
size: XPS 200

cascade evaporator

installation with slope

size: XPS 100

secondary steam generator

kettle type

size: XPS 100

vacuum evaporator

multi heat packs in the shell

size: XPS 50

Condensers

Round heat exchanger plates in XPS plate heat exchangers are also suitable for condensing duties. GESMEX condensers work as a total condenser, partial condenser or gas dryer, by cooling of water vapor below the dew point. The vapor is normally on the shell side, which provides larger inlet connections and flexability with smaller condensate nozzles.

Beside pure condensation, steam desuperheating and condensate sub-cooling can be combined all in one unit.

  • large vapour inlet nozzle sizes (up to 1,000mm), smaller nozzle for full condensation liquid outlet

  • integrated vapour-liquid knockout put for partial condensers ensuring good separation of the liquid and gas phases

  • separate nozzles for removing non-condensed gases and condensate.

The heat exchangers can be fully welded or openable, countercurrent or in cross flow, with single or multi-pass on the plate side.

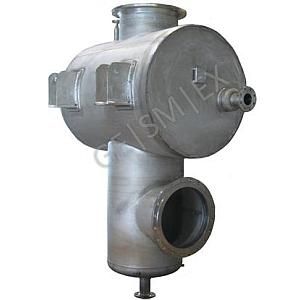

gas dryer

size: XPS 50

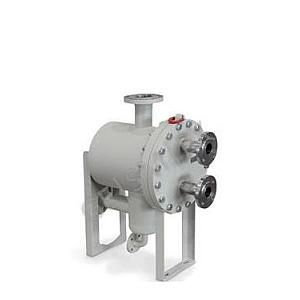

total condenser

size: XPS 150

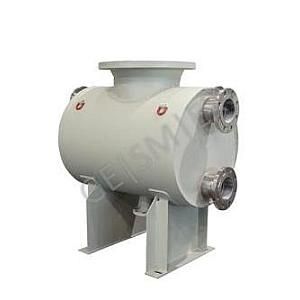

partial condenser, multi passes
with liquid collector / separator

size: XPS 200

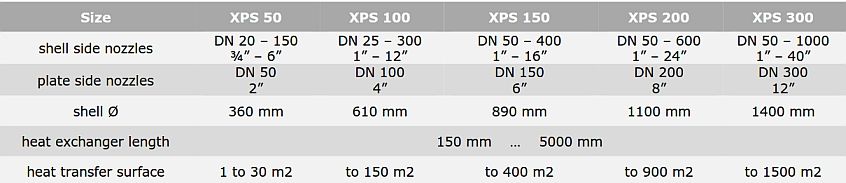

Sizes and Dimensions

GESMEX supplies Plate & Shell heat exchangers in five sizes, with material thicknesses of the heat exchanger plates from 0.6 to 2.5 mm and with different corrugation patterns.

Materials of XPS-Heat Exchangers

Flow directors are fabricated from the same material as the plate. No elastomers are used in XPS heat exchangers. Fully welded units are totally gasket-free. The standard configuration of openable heat exchangers is with graphite tanged steel flat-ring gaskets.
